HAWK Level Sensor
HAWK Level Sensor | Ultrasonic level sensor, Water level sensor

HAWK Level Sensor

HAWK MEASUREMENT SYSTEMS​

อุปกรณ์เครื่องมือวัดระดับและอัตราการไหล (Level &Flow Measurement Sensors) ที่ได้มาตรฐานทั้งในและต่างประเทศโดยใช้เทคโนโลยีคลื่นความถี่ที่มีให้เลือกมากมาย เช่น คลื่นเสียง (Acousticwave), คลื่น ไมโครเวฟ(Microwave), คลื่นโซนาร์ (SonarWave) และคลื่นอัลตราโซนิก (Ultrasonic wave) อีกทั้งยังมีอุปกรณ์สวิตช์ที่ใช้ส่งสัณญาณเพื่อควบคุมอุปกรณ์อื่นๆให้ทำงานรวมกันอย่างมีประสิทธิภาพ

Continuous Level Transmitters | HAWK Level Sensor​​

Continuous Level Transmitters​​

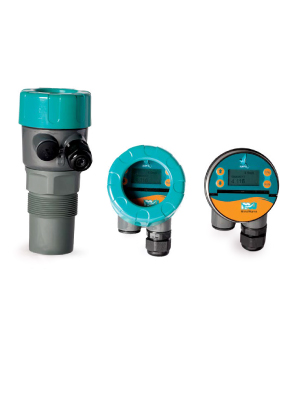

Sultan Acoustic Wave Series​

The SULTAN 234 emits a high powered Acoustic Wave transmit pulse which is reflected from the surface of the material being measured. The reflected signal
is processed using specially developed software to enhance the correct signal and reject false or spurious echoes.​​
Download for Specification

Point Level Switches

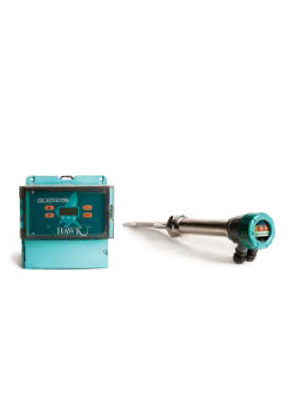

Gladiator Admittance Smart Switch Series​

The probe of the Admittance Switch forms one plate of a capacitance circuit, with the vessel wall making the second plate. The
dielectric constant of the product between the probe and the vessel wall will cause a change of capacitance as the level approaches
the probe. The change is detected, amplified and used to switch a relay for indication or control purposes.
A special circuit is used to
ignore product build-up between the sensing probe (active element) and guard, and also between the guard and vessel wall.
Download for specification
Point Level Switches | HAWK Level Sensor​​
Point Level Switches | HAWK Level Sensor​​
GladiatorConductivity Switch Series
Download for specification
Point Level Switches | HAWK Level Sensor​​
GladiatorVibration Smart Switch Series
Download for specification
Point Level Switches | HAWK Level Sensor​​
RS4000Rotation Switch Series
Download for specification
Blocked Chute Protection Swiches | HAWK Level Sensor​​​

Blocked Chute Protection Swiches​

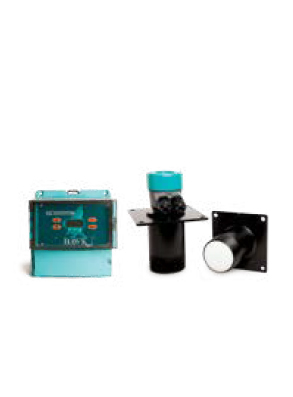

Gladiator Acoustic Switch & Auto Spray Cleaner​

The Gladiator Acoustic Switch uses Acoustic Wave technology in a new Sender / Receiver form for blocked chute detection and anti collision for heavy machinery. The Gladiator Amplifier powers two AW Transducers which use special HAWK developed software
where both units pulse and receive each other’s Acoustic echoes. When the path between the Transducers is blocked, the units immediately detect the presence / absence change of the return signal and trigger a communications relay for indication or control purposes.
Download for specification
Blocked Chute Protection Swiches​ | HAWK Level Sensor​​
G1Microwave Switch Series
Download for specification
Blocked Chute Protection Swiches​ | HAWK Level Sensor​​
Gladiator Gen 3 Microwave Switch Series
Download for specification

Magnetic Level Gauge

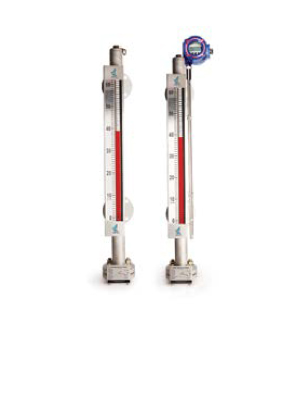

HAWK Magnetic Level Gauge

The HAWK Magnetic Level Gauge (MLG)is widely applied in the monitoring and process control of liquid level and interface for many industries; such as petroleum,chemical, power, paper, metallurgy, water treatment etc.
Download for specification
Magnetic Level Gauge | HAWK Level Sensor​​
Sonar Bed Level System​ | HAWK Level Sensor​​

Sonar Bed Level System​

ORCA Sonar System​

The ORCA Sonar Series transducer emits a high powered lowfrequency pulse, which is reflected from the interface density selected.​
Download for specification

HAWK Magnetic Level Gauge

The HAWK Sultan Sonar uses Advanced Sonar Technology tomeasure and control Waste Water Clarifiers and Thickeners. The system is easy to use and the innovative design providescritical plant control to optimize performance.
Download for specification
HAWK Magnetic Level Gauge | HAWK Level Sensor​​
Non Contact Flow Measurement | HAWK Level Sensor​​​

Non Contact Flow Measurement​

Gladiator Gen 3 Doppler Microwave Switch Series​

The HAWK Gladiator Doppler Microwave flow switch is used in process applications requiring highly reliable non-contact, non intrusive product flow detection and movement. The system operates by sending out bursts of microwave energy toward the target
product being monitored.
Download for specification

Sultan Flow

The Sultan Flow measurement system operates by transmittingan ultrasonic signal from its transducer towards the liquid being monitored. The reflected signal or echo is receivedby the transducer and processed.
Download for specification
Sultan Flow | HAWK Level Sensor​​
